Porta-Dock Shallow Water Lifts
Porta-Dock offers a complete line of low maintenance aluminum Shallow Water Lifts.
Our lifts are designed and engineered with features that make each lift work with your boat or pontoon. Constructed of high-quality 6000 series aluminum for maximum strength and durability, our lifts are rustproof, corrosion resistant, and unaffected by weather conditions or uv rays.
- 3,000-5,000 lb. lift capacity
- 113″-120″ beam
- Chain or gear drive winch
- Stainless steel cables
- 4 adjustable legs (optional screw legs available)
- Lightweight aluminum frame
Bunk Assemblies
Bunk assemblies adjust both vertically and horizontally for maximum boat support.
- Deluxe Pontoon Bunks (DPB)
- Full Length Bunks (FLB)
- Full Pontoon Bunks (FPB) Standard
- Full Pontoon Bunks (FPB) Tri-Tube
- Economy V Bunks (EVB)

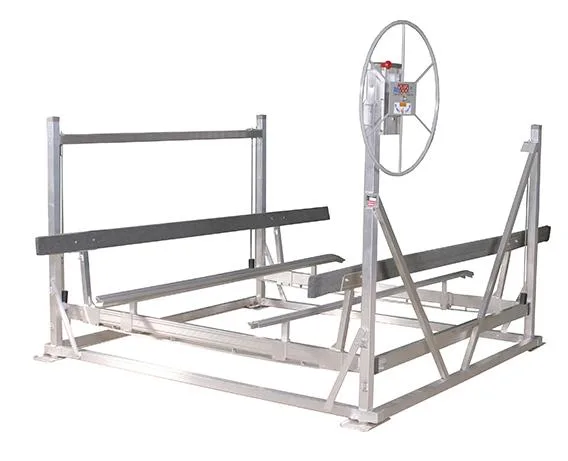

Shallow water lift
Porta-Dock’s Shallow Water Lifts only use 6 3/4” of water.
Features
- All four legs are adjustable – making it easy to set proper depth (optional screw legs available)
- Extruded aluminum bunk assemblies with ribbed polyurethane bunk covers on Deluxe Pontoon Bunks (DPB)
- Chain or gear drive winch comes standard with self braking for safe and easy operation
- Low maintenance
- Stainless steel cables
- Lightweight aluminum frame
- Enclosed pulleys
- 66” maximum lifting height
- Lift wheel included on all models
- Canopies available
- Optional motor stop
Shallow Water Lift Specifications
| Lift Type | MODEL | BEAM | Bed Type | Max Capacity | *Weight |
|---|---|---|---|---|---|
| Shallow Water (Vertical) | 30113 | 113" | 9 | 3000 lbs | 345 lbs |
| Shallow Water (Vertical) | 30120 | 120" | 9 | 3000 lbs | 355 lbs |
| Shallow Water (Vertical) | 40113 | 113" | 9 | 4000 lbs | 395 lbs |
| Shallow Water (Vertical) | 40120 Standard | 120" | 9 | 4000 lbs | 405 lbs |
| Shallow Water (Vertical) | 40120 Long | 120" | 11 | 4000 lbs | 415 lbs |
| Shallow Water (Vertical) | 50120 | 120" | 11 | 5000 lbs | 518 lbs |
| Shallow Water (Vertical) | 50120 Long | 120" | 15 | 5000 lbs | 495 lbs |
